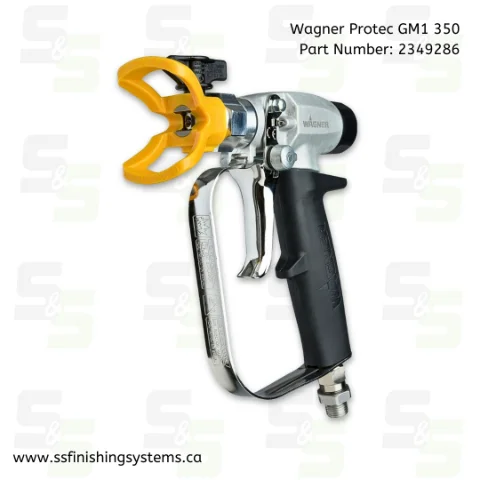

PROTEC GM1‑350 Airless Spray Gun – Lightweight Industrial Finishing
Overview
The PROTEC GM1-350 is a high-performance airless manual spray gun designed for industrial applications involving high viscosity materials and protective coatings. It delivers efficient, reliable atomization and operator comfort—ideal for long-duty spraying tasks.
Key Feature
-
Maximum Working Pressure: 350 bar (5,076 psi)
-
Ergonomic 2-Finger Trigger: Reduces fatigue during extended use
-
ProfiTip Nozzle Holder: Enables quick and secure tip changes
-
Integrated Filter System: Prevents nozzle clogging and ensures smooth operation
-
Lightweight Design: Weighs only 560 grams (1.23 lbs) for better maneuverability
-
Material Inlet: ¼″ NPS
-
Noise Level: Max 85 dB(A)
-
Material Compatibility: Suitable for a wide range of water- and solvent-based coatings
-
Maximum Material Temperature: 80 °C (176 °F)
-
Dimensions: Length: 160 mm, Height: 188 mm
-
ATEX Certified: Explosion-safe for Zone 1 environments (Ex II 2G X)
Technical Specifications
| Specification | Value |
|---|---|
| Max Pressure | 350 bar / 5,076 psi |
| Material Inlet | ¼″ NPS |
| Trigger Type | 2-finger |
| Weight | 560 g (1.23 lbs) |
| Max Material Temp | 80 °C (176 °F) |
| Noise Level | Max 85 dB(A) |
| ATEX Classification | Ex II 2G X (Zone 1 safe) |
| Nozzle Holder Thread | G (7/8‑14 UN/2A) |
