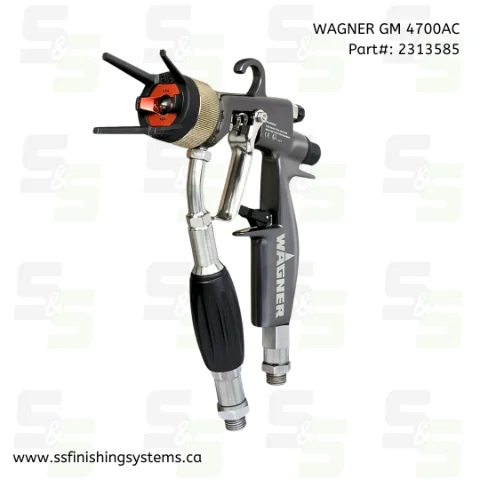

GM 4700AC – Wagner AirCoat Manual Gun

GM 4700AC – Wagner AirCoat Manual Gun – Ergonomic, High-Precision Spray Tool



Overview

• Advanced ergonomic design ideal for larger hands

• Up to 93% transfer efficiency—comparable to HVLP systems

• Smooth atomization for fine finishes on wood and metal surfaces

• Integrated air cap control for precise fan pattern adjustment

• Ultra-light trigger pull with safety latch

• Tool-free inline filter with 50% greater filtration capacity

• Swivel joints on both air and fluid inlets for maximum flexibility

• Durable stainless steel fluid passages (optional ceramic-coated version available)

Technical Specifications



Feature	Value
Fluid Inlet	NPSM ¼″
Air Connection	G ¼″
Max Material Pressure	250 bar (25 MPa / 3,626 PSI)
Max Air Inlet Pressure	8 bar (116 PSI)
Max Material Temperature	55 °C (131 °F)
Operating Temperature	5–40 °C (41–104 °F)
Weight	~0.6 kg (1.3 lb)
Dimensions	L: 173 mm, H: 216 mm
Noise Level	82 dB(A)
Inline Filter	100‑mesh, tool-free design
Fan/Atomization Control	Fully adjustable
